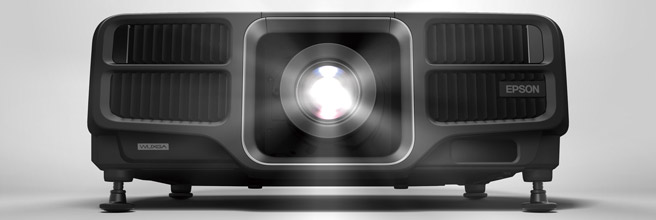

Epson EB-L1505UNL Projector

  • Laser Light Source – Experience astonishing quality and reliability
  • Up to 3x Brighter Colours, and reliable performance* – 3LCD, 3-chip technology
  • 4K Enhancement – Go beyond High Definition with 4K enhancement and native WUXGA (1920 x 1200) resolution for presentations, videos, digital signage and more
  • 12,000 Lumens – Deliver captivating images in virtually any venue
  • Colour Uniformity – Keep images consistent and maintenance to a minimum with built-in automatic colour correction
  • Edge Blending – Combine multiple individual images to create one seamless giant image
  • 3x Digital connections – Digital quality and distance flexibility
  • HDBaseT – Transmit Full HD video and audio, Ethernet and serial communication through a single CAT 5/6 cable that can be extended up to 100m
  • 360° Installation – Install on any plane, from horizontal to vertical and everything in between
  • Powered lens shift, zoom and focus – Project perfectly uniform images with a new stepping motor and store up to 10 lens settings
  • Eight optional lenses – Choose the ideal powered lens for your venue from a wide range from short throw to long throw
  • 24/7 Operation – With advanced installation flexibility and continuous use, Epson’s Installation projectors are suitable for almost any application
  • Digital Split Screen – Project two different images from one projector

Product Brochure

Laser Light SourceExperience astonishing quality and reliability with Epson’s new laser light source and advanced filter. A newly designed laser light source and advanced electrostatic filter deliver 20,000 hours of maintenance-free use and consistent performance for total peace of mind during important presentations. Additionally, the laser light source is highly reliable, eliminating worry of the light burning out during important presentations.

3LCD TechnologyAll Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

Up to 3x Brighter Colours with Epson Projectors*Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don’t force a tradeoff between white and colour brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.

All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.

4K Enhancement

Take presenting into the future with support for 4K and the ability to upscale Full HD 1080P content with Epson’s 4K Enhancement Technology — which shifts pixels diagonally by 0.5 pixels to double resolution — delivering crisp, high-definition images.

Inorganic ComponentsOur newly developed phosphor wheel is made of inorganic material with superior light and heat-resistance to deliver excellent reliability. We’ve also developed inorganic LCD panels, key components of imaging devices. Combining an inorganic phosphor wheel with inorganic LCD panels in a laser projector results in bright, vibrant images for extremely long periods.

12,000 lumens of brightnessPowered by 3LCD technology and Epson’s laser optical engine, the L Series is capable of producing White Light and Colour Light Output of up to 12,000 lumens in WUXGA resolution, delivering captivating images in virtually any venue.

The laser light source also lets you take control of brightness with precise adjustment in increments of 1% and a constant brightness mode that maintains brightness at a specified level to match any venue or subject.

5 Year Warranty1Experience complete peace of mind with the 20,000 hours or 5 year warranty (whichever comes first). This ensures reliable long-term performance and gives you the freedom to concentrate on your presentations. Additional CoverPlus options will also be available.

Powered Lens Shift, Zoom and FocusThe motorised lens shift covers a wide range, giving you a great deal of flexibility when installing the projector. A newly adopted stepping motor lets you make highly precise adjustments when employing edge blending, stacking and other techniques. Adjustments can be made via remote control or over a network, enhancing usability even for ceiling-mounted projectors.

Lens Position Memory
Up to 10 settings can be stored in the projector memory, including shift positions, focus and projection sizes.

High ResolutionFeaturing native resolution up to WUXGA (1920 x 1200), the Epson L Series delivers high quality images and crisp, sharp text without any distortion. And, it makes it easy to display more content. You can also display HDTV content at its native resolution with quality that surpasses even that of 1080p devices.

WUXGA resolution is ideal for any application requiring full Hi-Def, including BluRay content, graphic intensive programs, film slides, and any application requiring exceptional detail.

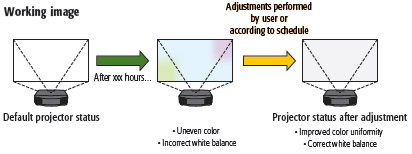

Colour UniformityKeep images consistent and maintenance to a minimum with a built-in camera that detects images that have become uneven over time, detect subtle inconsistencies between multiple projectors and enables automatic colour correction. You can choose whether to check manually or set up for automatic checking at regular intervals.

Incredible HDBaseT and diverse connectivityConnect with virtually any system including HDBaseT, HD-SDI, HDMI, DisplayPort, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands.

And it’s over 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.

360 Degree ProjectionThe Epson L Series can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

Edge BlendingEnhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.

Corner Wall and Curved Surface ProjectionQuickly and precisely correct any vertical or horizontal distortion of an image with Epson’s curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.

Arc CorrectionUsing arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.

Digital Split Screen®Split Screen allows users to display content from two inputs simultaneously, side by side, on a single screen with the option of three different layouts. This makes it possible to display video and presentation materials simultaneously, or run video on both screens.

DICOM Simulation ModeDICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector’s DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.

Multi-PC ProjectionEpson Multi-PC Projection allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector. You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image; another great tool for remote meeting setups.

Eight optional lensesFor added flexibility, the EB-L1505U offers a total of eight lens options, including middle, wide, long and short throw that allows users to choose the lens most suited for their environment. A quick-release lever allows for a fast, easy lens exchange.

Continuous 24 Hour UseEnjoy the flexibility of running your projector 24/7 with guaranteed performance and reliability. With Epson’s latest generation of inorganic LCD panels and unique optimised cooling systems, the L Series projectors are capable of 24/7 use warranted up to 20,000 hrs. With advanced installation flexibility and continuous use, Epson’s Installation projectors are suitable for almost any application!

New Ceiling MountsBoth standard and low profile ceiling mounts are available to give you even more installation flexibility across the L Series. Both mounts are now grey in colour to easily integrate into any colour scheme.


* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 1.03-inch (D10)
OPTICAL
Zoom 1 – 1.61 (Optical)
Screen Size (Standard Lens) 60″ to 500″ [1.99m to 17.17m] (Zoom: Wide)
60″ to 500″ [2.48m to 27.77m] (Zoom: Tele)
Projection Distance (Standard Lens) 100″ screen 3.37m – 5.49m
Throw Ratio 1.57 (Zoom:Wide), 2.56 (Zoom:Tele)
Projection Lens F Number 1.8-2.5
Projection Lens Focal Length 36mm – 57.35mm
Focus Method Powered
Colour Light Output 12,000 Lumens
White Light Output 12,000 Lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
Light Source Laser Diode
LD Input Power 670 W
Keystone Correction (Standard Lens) Vertical: -45 to +45 degrees
Horizontal: -30 to +30 degrees
Lens Shift (Standard Lens) Vertical: -60% to +60% (Powered)
Horizontal: -18% to +18% (Powered)
CONNECTIVITY
Input: Video 1 x 5BNC
Input: Computer 1 x D-sub 15-Pin (RGB)
Input: Digital 1 x HDMI, 1 x DVI-D, HDBaseT
Input: SDI 1 x BNC
Input: Audio 3 x Stereo mini
Input: Control 1 x RS232c, 1 x Stereo mini (Remote)
Input: Network I/O 1 x RJ45 (Art-Net), 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT 1 x RJ45 (Art-Net)
Wireless Connectivity Optional
Output: Video 1 x Monitor Out (via D-sub 15-pin)
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection
EasyMP Multi PC Projection Yes
Wireless LAN Optional
4K Enhancement Yes
Lens Position Memory Yes (10 positions)
Split Screen Yes
Edge Blending Yes
Curved Screen Projection Yes
Corner Wall Projection Yes
Frame Interpolation Yes
360 Degress Projection Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington® – style lock provision
Wireless LAN Unit Lock
Security cable hole
Colour Modes Dynamic, Presentation, Cinema, sRGB, DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet) 492 x 586 x 211 mm
Weight Approx. 23.6kg (Including LM09 Lens)
Power Consumption: LD On 908W
Power Consumption: Standby 2.3W
Noise Level Normal/Quiet: 39/33 dB
