Epson EB-455Wi

 103,075.00

Epson is pleased to introduce the Epson EB-455Wi Interactive Ultra Short Throw 3LCD Multimedia Projector. Stylish and discreet, The EB-455Wi projector enables users to turn any hard flat wall into an interactive workspace.

SKU: V11H440052 Categories: , Brand:

KEY FEATURES:

  • Interactive Model – Turn any hard flat wall into an interactive workspace
  • Ultra Short Throw Projection – Minimised glare and shadows
  • Powerful Brightness up to 2,500 Lumens – No need to close the curtains or dim the lights
  • Low Power Consumption and Long Lamp Life – Low Total Cost of Ownership
  • Integrated Wall Mount Included – Stylish, unobtrusive modern design
  • Network Functionality – Operate and monitor from a remote location
  • 3 Year Projector / 1 Year Lamp Warranty – Peace of mind protection for your investment
  • Direct Connect to ELP-DC06 – View images directly from Document Camera / Visualiser
  • Long Life Electrostatic Filter – VImproved filter design delivers increased life of 5,000 hours

With stylish, modern design and cutting edge technology, the Epson EB-455Wi sets a new standard for Ultra Short Throw projection. Offering interactivity, a sharp, square-edged image, and a brightness of up to 2,500 lumens Light Output and 2,500 lumens Colour Light Output, the EB450Wi is ideal for the modern classroom environment. Interactive lesson content has never looked so good!

FEATURES AND BENEFITS:

Interactive Feature

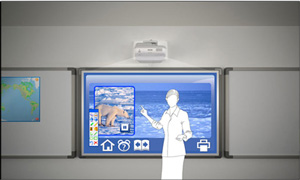

In the past, you needed a projector and an interactive whiteboard to create an interactive environment in a meeting room or class room. Now, you can make almost any wall interactive with the EB-455Wi.
This high performance projector and interactive-pen combination integrates interactive functionality into one machine. With no requirement for an interactive whiteboard, you can utilise an existing pen-based whiteboard or even a flat wall for full colour presentations, interactive brainstorming sessions, annotation on-the-fly and much more. With the EB-455Wi and it’s easy to use software (via download from www.epson.com.au) you can turn your whiteboard into a fully interactive business or teaching tool. At the end of your meeting, simply save the file for printing or emailing to attendees.

Ultra Short Throw Projection
Capable of producing an interactive image size anywhere from 59” up to 96” diagonal (native WXGA) on nearly any wall, the Epson EB-455Wi delivers an amazing interactive work environment. Thanks to this Ultra Short Throw distance, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, presentations will feature rich, vibrant colours that bring content to life. Plus, with up to 2,500 lumens Light Output, there is no need to dim the lights or draw the curtains, so meetings or lessons can start straight away without interruption.. By utilising the in-built 12W speakers, the EB-455Wi is able to fulfill your classroom requirements for delivery of audio included in multimedia content, or for use in conjunction with a microphone.

Low Power Consumption Plus Long Lamp and Filter Life
At Epson, we know that planning for the future requires a strong commitment to the environment. That’s why these products conform to the new European Directive on Eco-Design of energy using products. The main objective of this directive is to ensure energy efficiency throughout a product’s lifecycle. The EB-455Wi conforms to the criteria of this directive.

As with all Epson products, ease of use and low cost of ownership were paramount in the design process used to create the EB-455Wi. Lamp life is estimated at up to 3,500 hours in ECO mode, making it one of the longest lasting lamps in this category. We even back these lamps with a full 12 month, 750 hour lamp warranty to give you peace of mind. In addition, thanks to it’s improved filter design, the EB-455Wi filter now has life estimated at up to 5,000 hours!

Integrated Wall Mount Included
In keeping with the sleek, unobtrusive design of these projectors is the integrated wall mount that ships with the product. No additional purchase is required for install, and being Epson designed and manufactured, you know that the quality is second to none.
With the Epson mount, installation and set up is a breeze. The projector ships with the mounting plate already attached, ready to slide onto the mount arm. Featuring micro adjustment capabilities for tilt, pitch and yawl means that installers are able to get a perfect picture quickly and easily. That means less down time for each classroom and less cost to the school.

Network Functionality
With the EB-455Wi, monitoring and operation can be carried out from a remote PC via network connection. System Administrators can turn the projector off, switch between sources, as well as control and monitor lamp and temperature conditions. Using this feature you can be sure that all projectors are operating correctly and be certain that all units are turned off at the end of the day and in the process, save time, money and reduce drain on the environment.

Direct Connect to ELP-DC06
Further enhancing suitability to the modern classroom is the ability for the EB-455Wi to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.

Wireless Connectivity
With the addition of the ELPAP03 Wireless LAN Unit, the EB-455Wi projector becomes a part of your 802.11a/b/g wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP05 Easy MP quick wireless connection USB key.

PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Ceiling Mount Front / Ceiling Mount Rear
SPECIFICATION OF MAIN PARTS
LCD Size 0.56 inches with MLA
Driving method Poly-Silicon TFT Active Matrix
Pixel number 1,024,000 pixels (1280 x 800) x 3
Native resolution WXGA
Aspect ratio 16:10 (which covers 16:9 and 4:3)
Pixel arrangement Stripe
Refresh Rate 50Hz-60Hz
PROJECTION LENS Type Digital zoom / Manual focus
F-number 1.8
Focal length 4.68mm
Zoom ratio 1.0 – 1.35 (Digital)
LAMP Type 230W UHE E-TORL
Life (estimated) 2500Hr (Normal Mode) # 3500Hr (ECO Mode) #

#Subject to operation & environmental conditions.

OPTICAL SYSTEM Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE) 59 to 97 inch [0.465 to 0.766 m]
BRIGHTNESS
Normal Mode 2,500 Lumens Light Output
2,500 Lumens Colour Light Output
(Colour mode: Dynamic, Zoom, Wide)
ECO Mode 1,740 Lumens Light Output
1,740 Lumens Colour Light Output
(Colour mode: Dynamic, Zoom, Wide)
CONTRAST 2,000:1 (Color mode: Dynamic, High brightness mode, Zoom: Wide, Auto iris: On)
BRIGHTNESS UNIFORMITY 90% (Typ.)
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
VIDEO QUALITY 3D Y/C separation, Noise Reduction Motion compensated Interlace-Progressive conversion (2-2,3-2 film detection)
SOUND OUTPUT 12W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK 13.5MHz to 162MHz
HORIZONTAL 15KHz to 92KHz
VERTICAL 50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal
Colour Temperature / Tracking / Position / Sharpness / Volume etc… /
COLOR MODE Dynamic, Presentation, Theatre, Photo, Sports, sRGB, Blackboard, Whiteboard,
FOOT ADJUSTER Front-centre
TILT ANGLE 0 to 13 degrees
KEYSTONE CORRECTION Vertical: +/- 5 degrees
PASSWORD PROTECTED FUNCTION (security function) Implemented
MICROPHONE VOLUME/MIX Yes
EASY INTERACTIVE FUNCTION Yes
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1280 x 800 pixels
INPUT SIGNAL Signal type Separate signal
Video signal Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
Sync. signal Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
Audio signal 500mVrms / 47k-ohm
INPUT TERMINAL Video D-sub 15pin x 1 Blue moulding
Audio Stereo mini jack x 1
OUTPUT SIGNAL Video Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
Sync. Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2 – 0.4Vpp)
OUTPUT TERMINAL Video D-sub 15pin x 1 (Black moulding)
VIDEO I/O
DISPLAY PERFORMANCE NTSC: 560 line PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
Video signal Composite Video (1.0Vpp / Sync. negative, 75ohm) /
S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) /
Component Video (Analog Y level 0.75V 75ohm / Cr Cb level
+/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) /
Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm
Audio signal 500mVrms / 47k-ohm
INPUT TERMINAL Video Composite Video: RCA (Yellow) x1
S-Video: Mini DIN
Component Video: D-sub 15pin Blue molding
Audio RCA x 2 (White/Red )
USB DISPLAY Display Performance 1280 x 800
Video Yes
Audio No
CONTROL I/O
SERIAL I/O Terminal D Sub 9 pin x 1
Signal RS-232C
USB I/O Terminal USB Type B x1 Ver. 2.0 (USB Display, mouse, K/B)
MICROPHONE Terminal Stereo mini jack 3.5 mm
MEMORY I/O
USB I/O Terminal USB Type A x1 Ver. 2.0 (USB Memory / document camera)
NETWORK I/O
Network Interface RJ45 x 1
USB I/O Terminal Type A x 1 (Optional wireless LAN unit I/O)
EASY MP
FUNCTION E-mail notification
SNMP
Web control
PJ-Link
AMX Device Discovery compatible
Slideshow (photo)
Network Presentation
Message Broadcasting
SOFTWARE EasyMP Network Projection Ver.2.61
EasyMP Monitor Ver.4.40
WIRELESS SECURITY WEP, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES)
OPERATING TEMPERATURE 5°C to 35°C (41°F to 95°F) > (20%-80% Humidity )
COOL-DOWN PERIOD “Instant Off”
START-UP PERIOD Approx. 9 seconds (warm up 30 seconds)
DIRECT POWER ON Yes
DIRECT POWER OFF Yes
POWER SUPPLY VOLTAGE 100-240V AC±10% 50/60Hz
POWER CONSUMPTION 240VAC 2.7-1.1A 50/60Hz Lamp
343W (Lamp on) 0.3W (standby, network off)
EXHAUST DIRECTION Side
DIMENSION
EXCLUDE FEET 369(D) x 481(W) x 115(H) mm
MAXIMUM DIMENSION 369(D) x 483(W) x 115(H) mm
WEIGHT Approx. 6.2kg (with mounting plate)
FAN NOISE
HIGH BRIGHTNESS MODE 35dB
LOW BRIGHTNESS MODE 28dB
